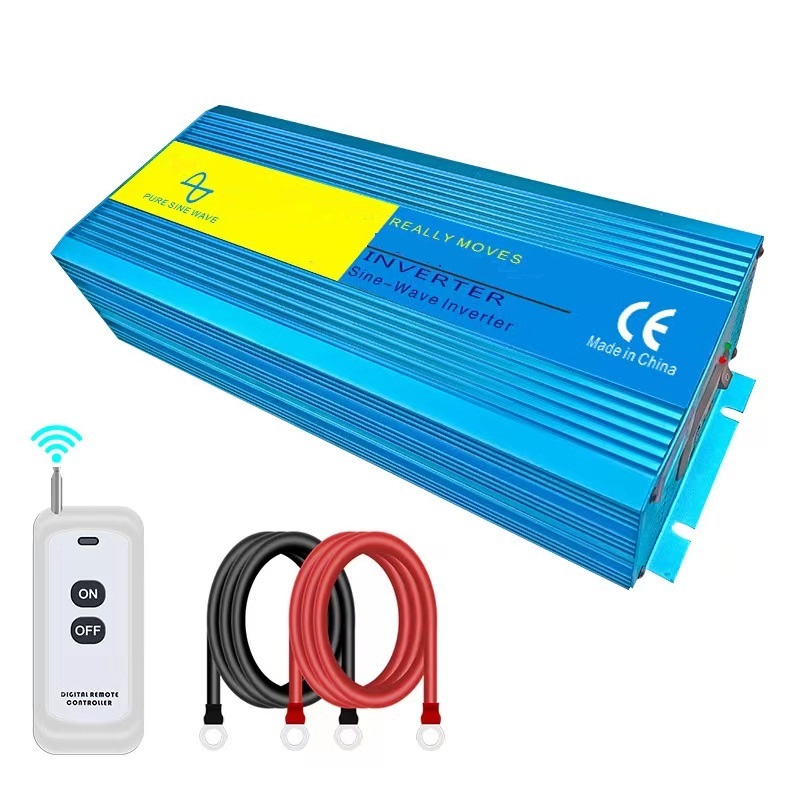

UPS Inverter 24V/48V 1.5KW/2.5KW with BMS Communication

UPS Inverter 24V/48V 1.5KW/2.5KW with BMS Communication

        (Customization Accepted)

Rated Power：24V 1.5KW /24V 2.5KW/48V  1.5KW /48V 2.5KW

Batery Voltage：24VDC/ 48VDC

Max AC charging current:

0A~20A*(We can customize as per to any requirement)

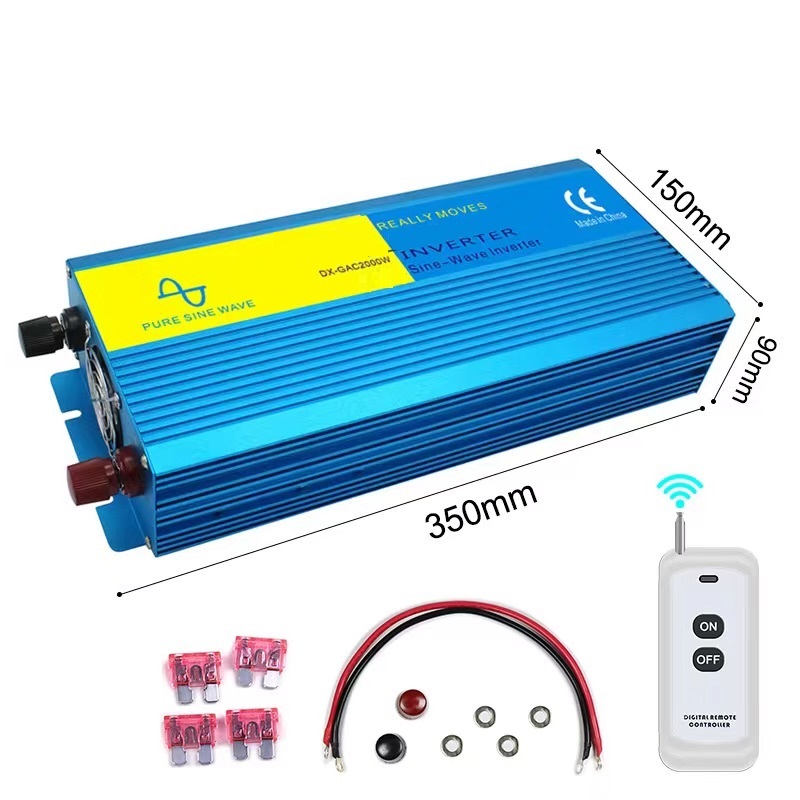

Size(L*W*Hmm)：About 370 X150 X90 mm

N.W.(kg)：3KG-20KG

Output  Waveform： Pure  Sine  Wave  Inverter  DC  to  AC  With  battery charge

LCD Display:Output voltage,battery voltage,load capacity,battery capacity

Frequency：50HZ/60HZ

Continouse power： 1.5KW 2.5KW 1.5KW 2.5KW

Peak  Power:2 times of rated power( can Customize according to application requirements.)

No load current draw: <0.8Amps

nversion Efficiency: >90%

input DC Voltage:24V or 48V

USB Output:Yes

output AC Voltage:220VAC-240VAC

over Load:Shut Off Output

Over Thermal:Shut Off Output Automatically

Fuses:Short Circuit

Start:Soft Start

Protection:Overload,Short-Circuit,Overtemp,Reverse Polarity,Under/Over Voltage protection

Cooling way：Cooling Fans

Warranty：2 Year

power switch controller:Two power switch controller (inverter switch,charger switch),so that it can support battery deep discharge

Communication：Communication with BMS
