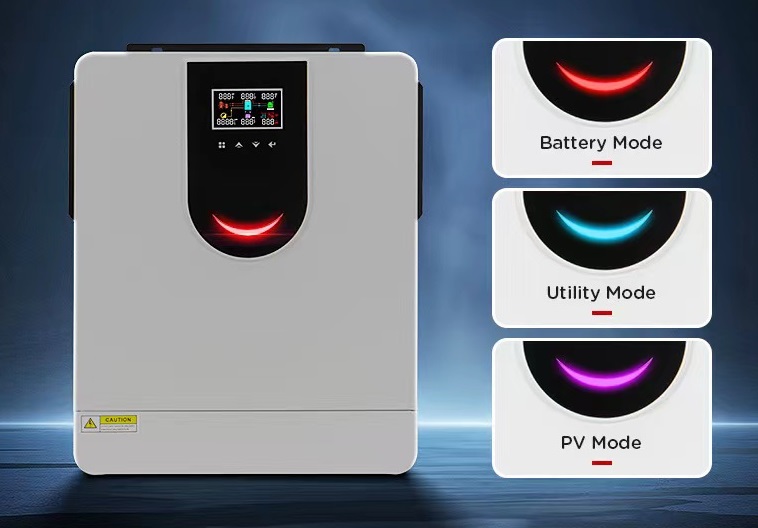

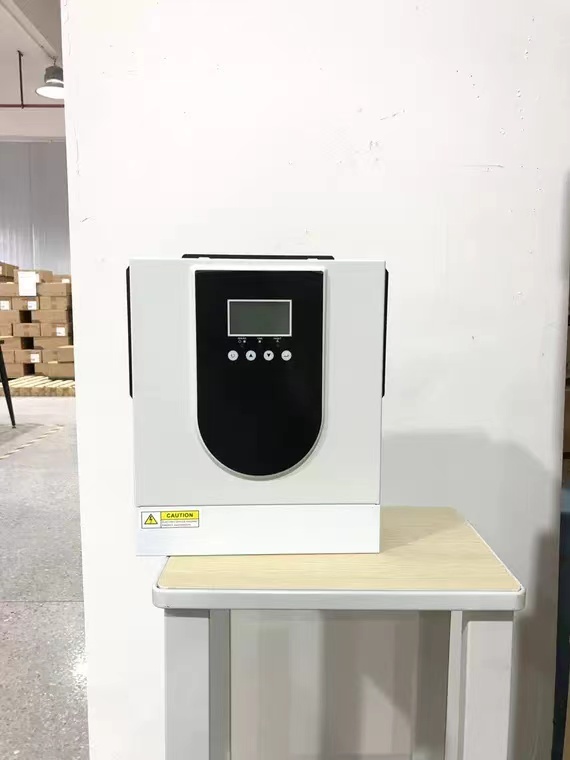

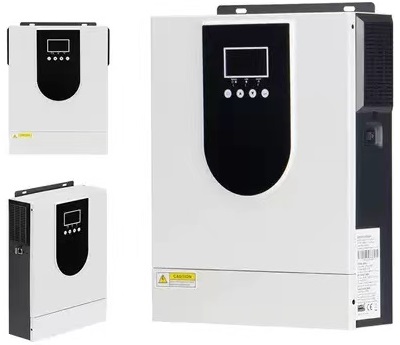

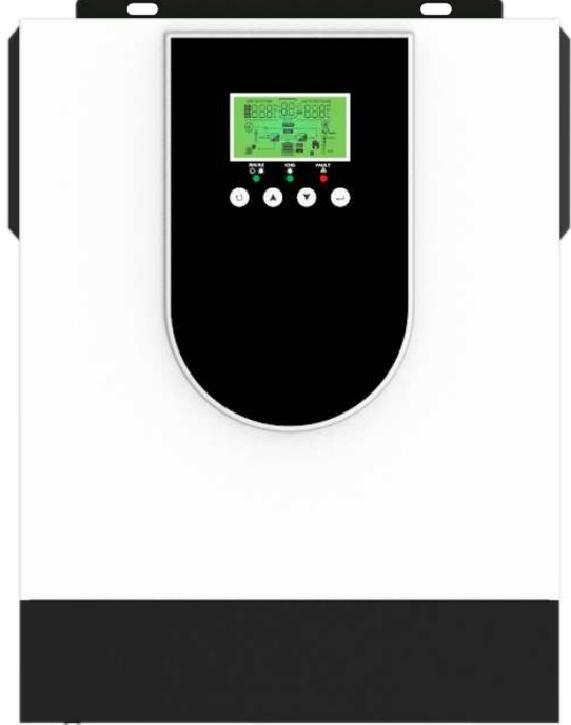

High Frequency Inverter 24V 1KW/1.5KW/2KW/2.5KW/3KW with MPPT and BMS Communication

AC Input

Voltage

230VAC

Selectable Voltage Range

170~280VAC(For Personal Computers)

90~280VAC(For Home Appliances)

Frequency Range

50 Hz/60Hz(Auto sensing)

AC OUTPUT

AC Voltage Regulation

230VAC±5%

Surge Power

2000VA

3000VA

4000VA

6400VA

Efficiency(Peak)PV to INV

98%

Efficiency(Peak)Battery

to INV

94%

BATTERY &AC CHARGER

Battery Voltage

24VDC

Floating Charge Voltage

27VDC

Overcharge Protection

33VDC

Maximum AC Charge Current

40A

60A

SOLAR CHARGER

Maximum PV Array Power

1000W

1080W

2000W

3000W

MPPT Range Operating Voltage

30-400VDC

Maximum PV Array Open Circuit Voltage

400VDC

Maximum Charging Current

40A

80A

PHYSICAL

Dimension,D*W*H(mm)

300x235×90

370*280*100

Cartoon Dimension,DXWXH(mm)

340x275x145

440*340*180

Dimensions of mounting holes(mm)

118-5x2

145-5x2

Net Weight(kgs)

3

3.5

5.1

5.5

Gross Weight(kgs

3.4

4

5.9

6.3

Communication interface

RS232/GPRS/WIFI

Humidity

5%to 95%Relative Humidity(Non~condensing)

Operating Temperature

-10～50℃
